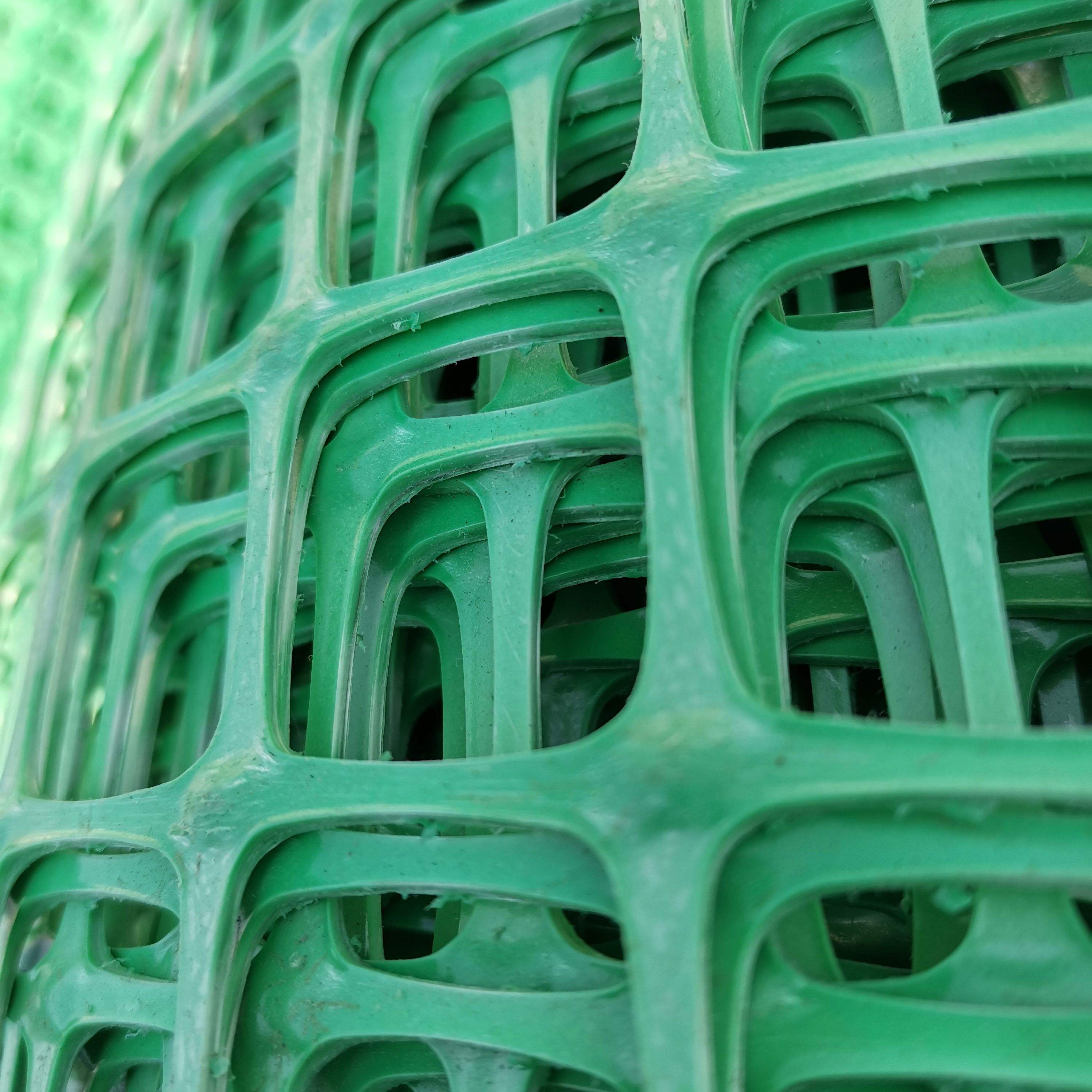

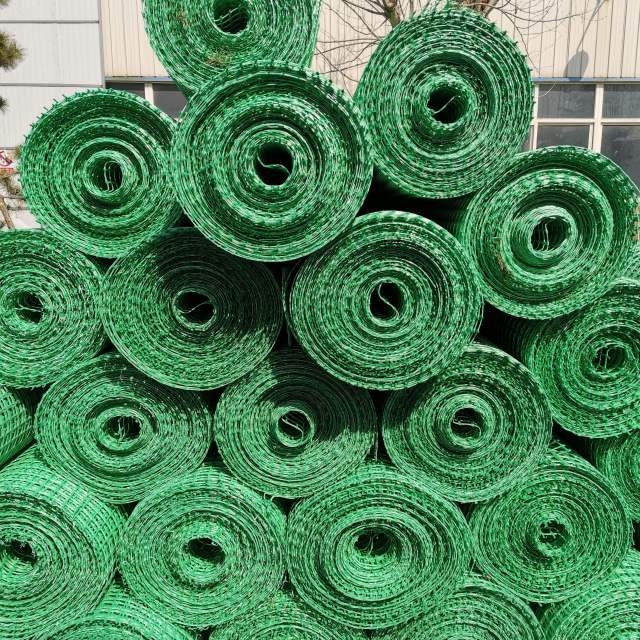

Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrid is a high-strength polymeric grid widely used in civil, hydraulic, and environmental engineering projects for soil reinforcement, slope stabilization, and retaining wall protection applications.
Introduction
Uniaxial Plastic Geogrid are one of the most professional geosynthetic materials used to enhance longitudinal tensile resistance and prevent soil displacement in various engineering projects. They provide exceptional structural stability and long-term durability in harsh geological environments.
What is Uniaxial Plastic Geogrid?
A

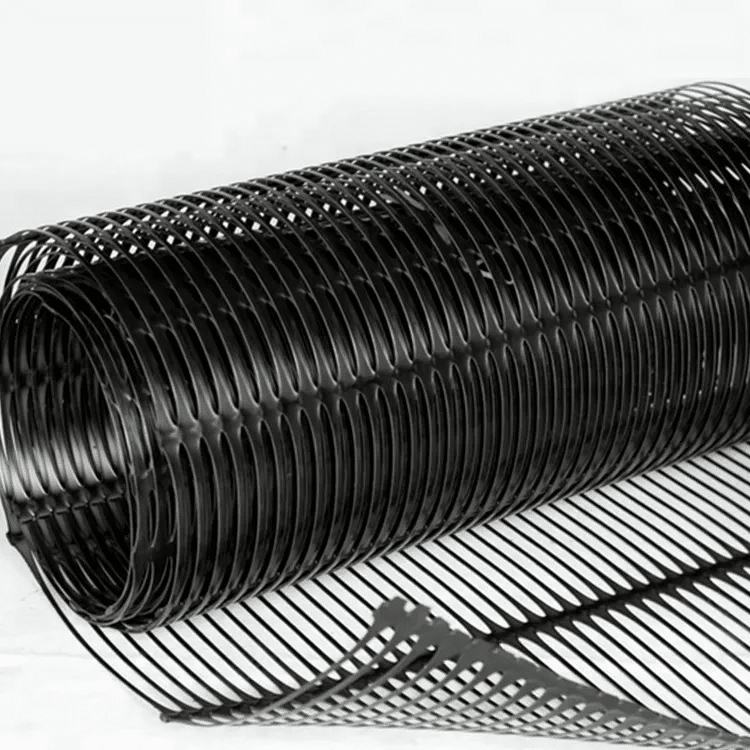

Uniaxial Plastic Geogrid is a rigid unidirectional grid structure manufactured through extrusion, punching and longitudinal stretching processes. It is commonly produced from high-density polyethylene (HDPE) and polypropylene (PP) raw resin.
These engineered grids are essential for reinforcing steep slopes, stabilizing retaining walls, and resisting continuous soil tension in geotechnical construction.
Types of Uniaxial Plastic Geogrids
-
HDPE Uniaxial Geogrid: low temperature resistance, excellent creep performance
-
PP Uniaxial Geogrid: high rigidity, strong chemical stability
-
Reinforced Uniaxial Geogrid: ultra-high tensile strength for heavy load projects
-
UV-Stabilized Uniaxial Geogrid: anti-aging for long-term exposed slopes
Key Features of Uniaxial Plastic Geogrid
-
Extreme unidirectional tensile strength and low elongation rate
-
High resistance to chemicals, acid, alkali and UV exposure
-

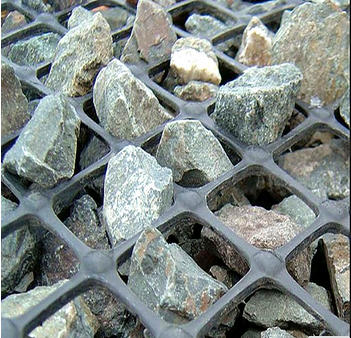

Excellent soil interlocking and anti-slip performance
-
Stable physical performance under long-term tension load
-
Adaptability to steep slope and retaining wall construction requirements
Technical Specifications
-
Tensile Strength: 20kN/m – 200kN/m
-
Width: up to 6 meters
-
Material: HDPE / Polypropylene
-
Structure: Uniaxial stretched grid
-
Standards: ASTM, ISO
Applications of Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrids are widely used in various industries:
-
Retaining wall reinforcement and lateral soil restriction
-
Steep slope stabilization and landslide prevention
-
Embankment reinforcement for highway and railway
-
Landfill slope and waste pile stabilization
-
Dam, river bank and coastal reinforcement projects
-
Mining industrial yard foundation anti-deformation systems
Advantages of Uniaxial Plastic Geogrid
Compared with traditional reinforcement materials, uniaxial plastic geogrids offer several advantages:
-
Superior unidirectional tensile and anti-creep performance
-
Effective reduction of soil lateral displacement
-
Cost-effective for large slope and retaining wall projects
-
Lightweight structure for easy transportation and laying
-
Long-term structural reliability under harsh conditions
Installation and Laying

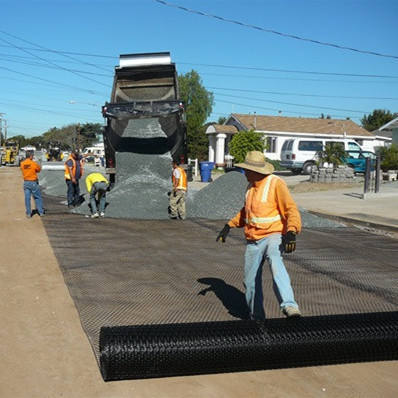

Uniaxial plastic geogrids are laid flat with tensile direction consistent with soil stress direction. The overlapping seams are fixed firmly with stakes to prevent sliding. Reasonable laying maximizes interlocking force and reinforcement effect.
How to Choose Uniaxial Plastic Geogrid?
When selecting uniaxial plastic geogrid, consider the following factors:
-
Project type: slope or retaining wall engineering
-
Required tensile strength and bearing load
-
Environmental conditions (corrosion, low temperature, UV)
-
Material selection: HDPE or PP raw material
-
Compliance with international geosynthetic standards
FAQ
What is uniaxial plastic geogrid used for?
It is mainly used for retaining wall reinforcement, steep slope stabilization and soil anti-deformation in geotechnical engineering.
What is the difference between uniaxial and biaxial geogrid?
Uniaxial geogrid has high strength in one direction for slopes and walls, while biaxial geogrid provides balanced bidirectional strength for road foundation.
How long does uniaxial plastic geogrid last?
It can last 50–80 years under buried and protected construction conditions.
Can uniaxial plastic geogrid be customized?
Yes, tensile strength, width and roll length can be customized for specific projects.
Conclusion
Uniaxial Plastic Geogrids are essential reinforcement materials for modern engineering projects requiring reliable slope stabilization and retaining wall solutions. Their high unidirectional strength, stable structure and durability make them a preferred choice across geotechnical construction industries.
