Plastic Blind Ditch, also known as Blind Drain, is a three-dimensional geosynthetic drainage product widely used in transportation, municipal, hydraulic and environmental engineering projects for underground water collection, seepage drainage and soil water removal applications.
Introduction
Plastic Blind Ditch are one of the most reliable buried drainage geosynthetic materials used to collect groundwater and quickly discharge excess water in various construction projects. They provide excellent compression resistance, high water permeability and long-term structural stability in humid and complex underground environments.
What is Plastic Blind Ditch / Blind Drain?
A
Plastic Blind Ditch is a three-dimensional hollow polymeric drainage structure designed to gather seepage water and prevent water accumulation inside soil layers. It is commonly manufactured from modified polyethylene (PE) and polypropylene (PP) raw resin with fused plastic wire structure.
These integrated mesh drainage structures are essential for roadbed dewatering, slope seepage control, foundation drainage and underground water level reduction, effectively avoiding soil softening and engineering deformation caused by water accumulation.
Types of Plastic Blind Ditches
Round Plastic Blind Drain: Circular hollow structure, smooth water flow for conventional buried drainage
Rectangular Plastic Blind Ditch: Flat wide structure, suitable for shallow roadbed and slope drainage

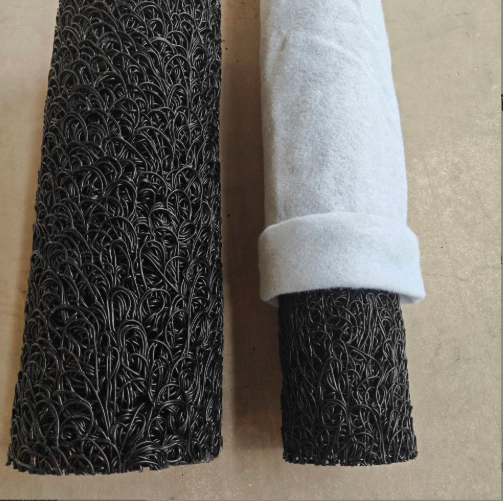

Composite Blind Ditch: Outer wrapped with geotextile for anti-blocking and filtration integration
High-strength Blind Drain: Thickened fused wire for heavy-load buried engineering conditions
Key Features of Plastic Blind Ditch
-
High void ratio and ultra-high water permeability for fast water collection
-
High resistance to chemicals, acid, alkali and long-term corrosion
-
Compression-resistant three-dimensional structure, not easy to collapse under pressure
-
Anti-aging and UV-stabilized performance for long buried service life
-
Integrated geotextile wrapping to prevent soil particle blockage
Technical Specifications
Diameter / Height: 50mm – 300mm
Length: 50 meters per roll (customizable)
Material: Modified PP / PE virgin plastic resin
Structure: Round / Rectangular three-dimensional fused mesh structure
Standards: ASTM, ISO
Applications of Plastic Blind Ditch
Plastic Blind Ditches are widely used in various industries:
-
Highway and railway roadbed internal dewatering and anti-freezing treatment
-
Steep slope, retaining wall and side slope underground seepage drainage
-
Landfill leachate collection and gas exhaust drainage systems
-
Artificial lake, wetland and river bank hidden drainage projects
-
Sports field, golf course and green lawn water drainage treatment
-
Tunnel, underground garage and municipal foundation drainage systems
Advantages of Plastic Blind Ditch
Compared with traditional gravel blind ditches, plastic blind ditches offer several advantages:
-
High water permeability and anti-blocking performance for stable long-term drainage
-
Integrated structure without collapse, maintaining permanent drainage channels
-
Lightweight and flexible for easy transportation and on-site cutting
-
Save construction time and reduce overall buried engineering cost
-
Excellent chemical stability adapting to complex soil environments
Installation and Laying
Plastic blind ditches are placed in pre-excavated drainage trenches with reasonable gradient design. Keep the drainage body straight without distortion. Overlap the connecting sections tightly and wrap geotextile completely to prevent soil infiltration. Backfill qualified soil layer by layer and compact gently to ensure stable buried structure and smooth internal water flow.
How to Choose Plastic Blind Ditch?
When selecting plastic blind ditch, consider the following factors:
-
Project type: roadbed, slope, landfill or landscape drainage
-
Required specification size and water flow discharge capacity
-
Buried depth and external soil compression pressure
-
Round type or rectangular type according to trench condition
-
Compliance with international engineering quality standards
FAQ
What is plastic blind ditch used for?
It is used for underground water collection, soil dewatering, slope seepage removal and foundation hidden drainage in geotechnical and civil engineering.
What is the difference between blind ditch and drainage board?
Plastic blind ditch focuses on concentrated underground water collection and pipeline drainage, while drainage board is mainly used for surface water diversion and pressure relief.
How long does plastic blind drain last?
Made of modified polymer material, it can last 50–80 years under buried conditions without structural damage.
Can plastic blind ditch be customized?
Yes, size, shape, roll length and wrapping geotextile can be customized for specific engineering demands.
Conclusion
Plastic Blind Ditches / Blind Drains are essential buried drainage materials for modern geotechnical engineering projects requiring reliable underground water collection and seepage removal solutions. Their three-dimensional hollow structure, high water permeability and corrosion durability make them a preferred choice across traffic, municipal and environmental construction industries
