Drainage Board is a high-density synthetic geosynthetic drainage sheet widely used in construction, municipal, landscape, and hydraulic engineering projects for water drainage, waterproof protection, ventilation, and soil isolation applications.
Introduction
Drainage Board are one of the most practical geosynthetic materials used to eliminate water accumulation and reduce hydrostatic pressure in various construction projects. They provide excellent compression resistance and long-term structural stability in humid and buried engineering environments.
What is Drainage Board?
A

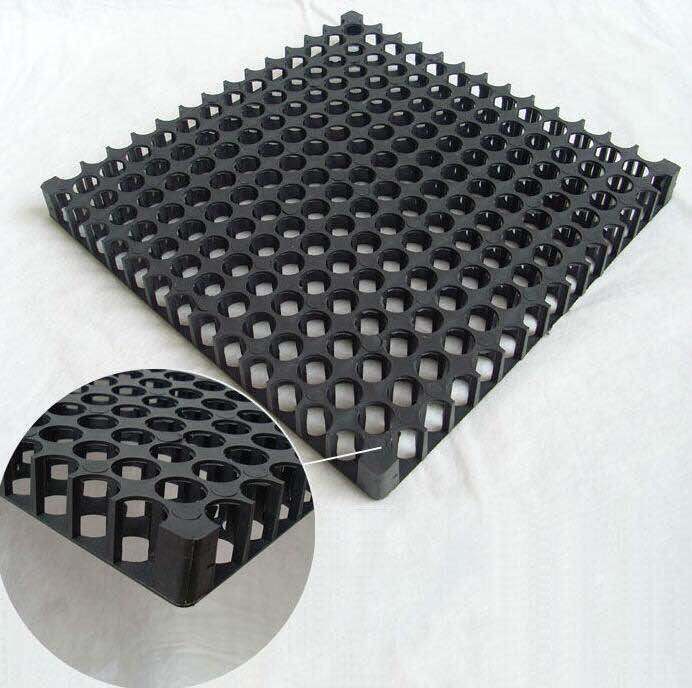

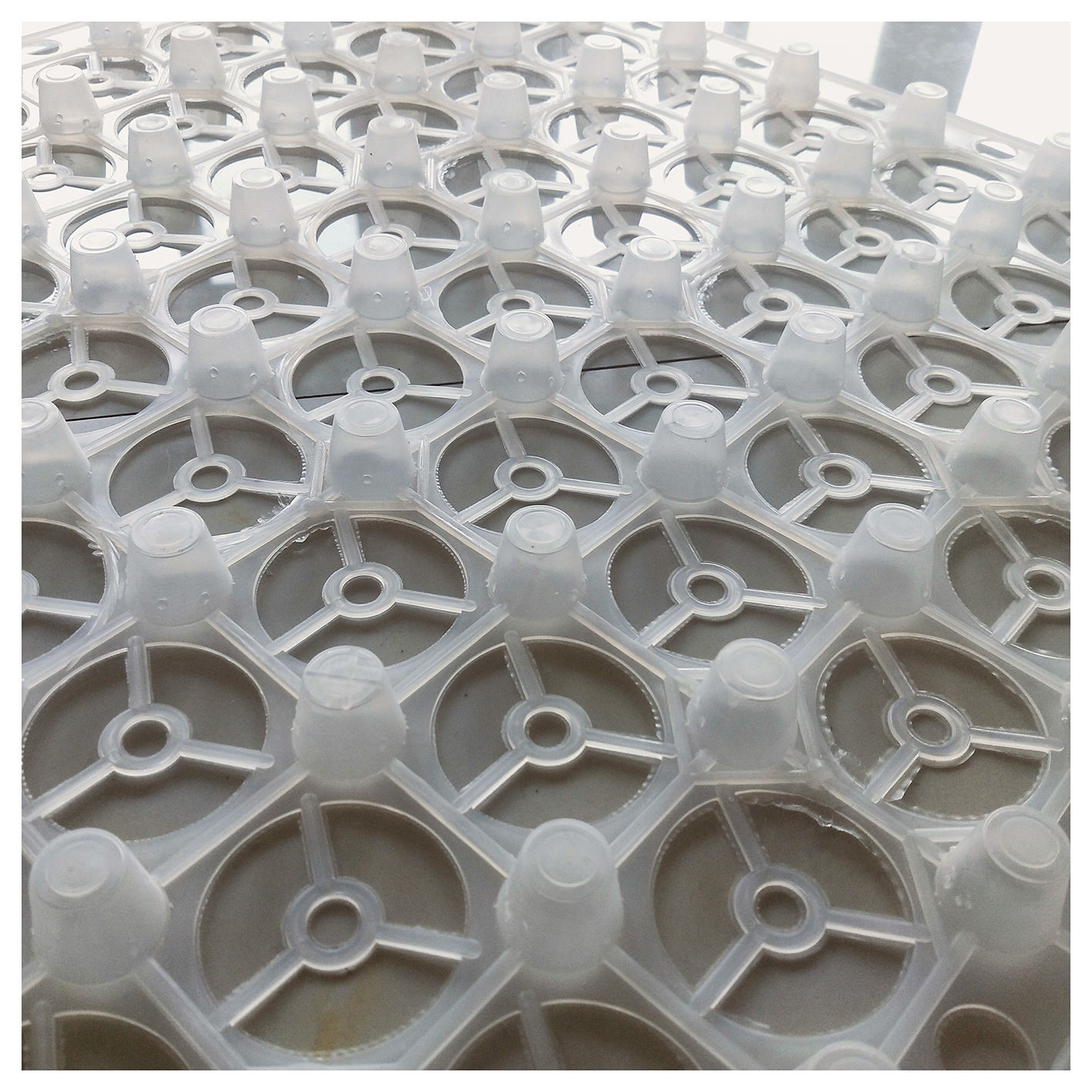

Drainage Board is a rigid dimple-shaped plastic drainage structure designed to accelerate water flow and prevent structural water damage. It is commonly manufactured from high-density polyethylene (HDPE) and polypropylene (PP) raw resin.
These concave-convex sheet structures are essential for basement waterproofing, roof greening drainage, underground isolation, and effectively improving the drainage efficiency of engineering layers.
Types of Drainage Boards

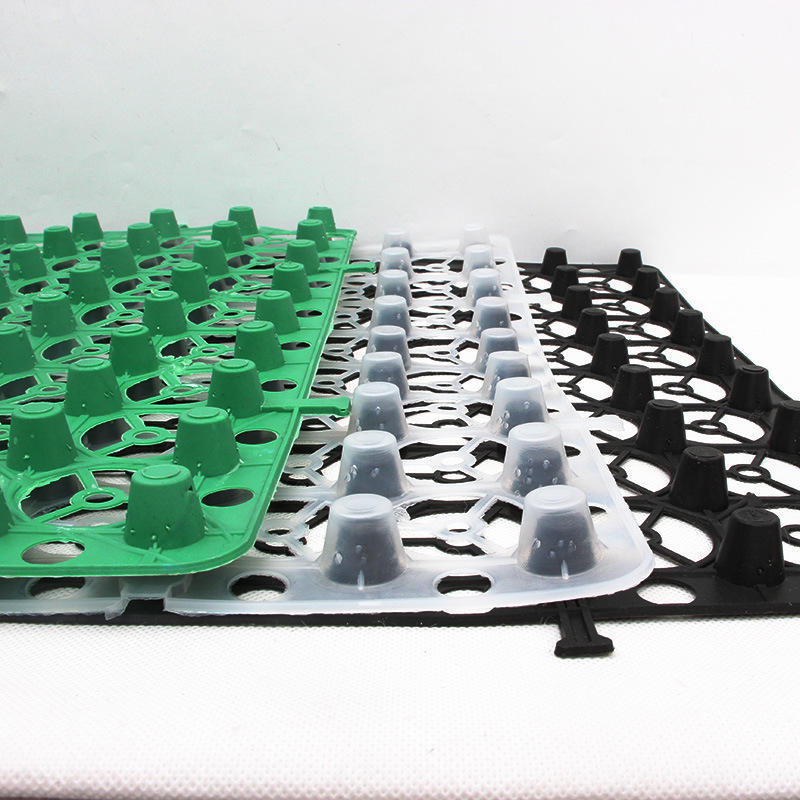

Single-Sided Dimple Drainage Board: Simple structure, basic drainage for general construction foundation

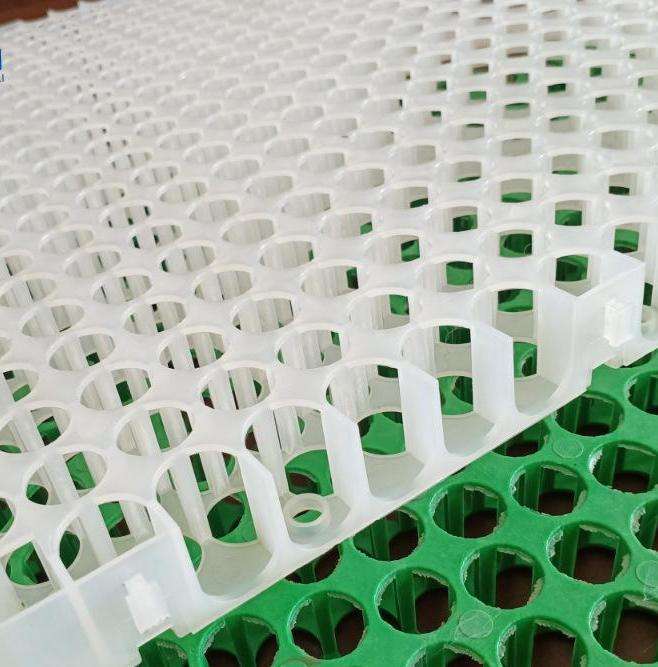

Double-Sided Dimple Drainage Board: Bidirectional drainage channel for complex underground structures
Composite Drainage Board: Bonded with geotextile, integrated filtration and drainage function
Water Storage Drainage Board: Drainage and water storage dual function for landscape greening
Key Features of Drainage Board
-
High compression resistance and non-deformation under heavy pressure
-
Excellent chemical corrosion and acid-base resistance
-
Smooth internal channel for fast water drainage efficiency
-
Anti-aging and UV-resistant for long-term buried service life
-
Lightweight sheet structure for easy cutting and construction
Technical Specifications
Dimple Height: 8mm – 50mm
Width: up to 4 meters
Material: HDPE / PP raw material
Structure: Single-sided / Double-sided dimple sheet
Standards: ASTM, ISO
Applications of Drainage Board
Drainage Boards are widely used in various industries:
-
Building basement waterproofing and underground space drainage
-

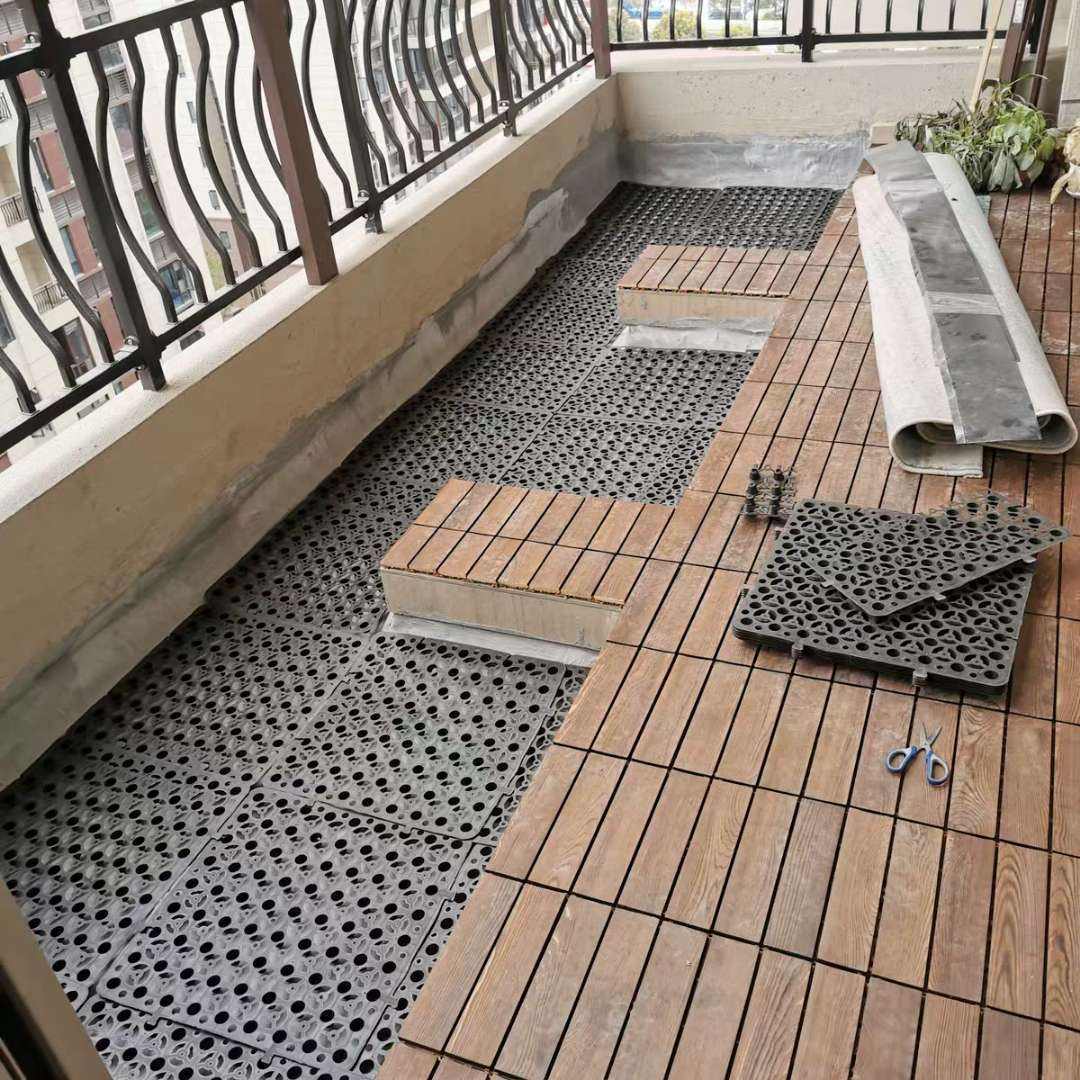

Roof garden, green roof and vertical greening projects
-
Landfill anti-seepage, drainage and gas exhaust systems
-
Tunnel, underground garage and municipal drainage engineering
-
Highway and railway tunnel isolation and water drainage treatment
-
Artificial lake, reservoir and slope water isolation projects
Advantages of Drainage Board
Compared with traditional gravel drainage methods, drainage boards offer several advantages:
-
Stable three-dimensional drainage channel without easy blockage
-
Reduce hydrostatic pressure and protect building waterproof layers
-
Save construction space and shorten project construction period
-
Lightweight roll sheet for convenient transportation and laying
-
Long service life with stable physical performance underground
Installation and Laying
Drainage boards are laid on flat and compacted base layers with overlapping joints. Keep the dimpled surface facing the water accumulation side. Seal the overlapping edges tightly to prevent water leakage and dislocation. After laying, cover protective materials to avoid sharp object damage and ensure smooth internal drainage channels.
How to Choose Drainage Board?
When selecting drainage board, consider the following factors:
-
Project type: basement, roof greening or landfill engineering
-
Required dimple height and compression resistance grade
-
Construction environment: humidity, corrosive soil or chemical contact
-
Single-sided or double-sided dimple structure demand
-
Compliance with international engineering quality standards
FAQ
What is drainage board used for?
It is used for rapid water drainage, basement waterproofing, roof greening water collection, and underground isolation protection in civil engineering.
What is the difference between drainage board and geotextile?
Drainage board focuses on three-dimensional water channel drainage and pressure reduction, while geotextile mainly provides filtration, isolation and anti-penetration functions.
How long does drainage board last?
HDPE drainage board can last 50–70 years under buried conditions with stable drainage performance.
Can drainage board be customized?
Yes, dimple height, sheet thickness, width and color can be customized for specific engineering requirements.
Conclusion
Drainage Boards are essential drainage and waterproof geosynthetic materials for modern construction projects requiring reliable water treatment and isolation solutions. Their stable three-dimensional structure, excellent compression resistance and corrosion durability make them a preferred choice across municipal, landscape and underground construction industries.
