Dimpled Drainage Board, also known as Dimple Membrane, is a high-density plastic geosynthetic sheet widely used in construction, municipal, hydraulic and environmental engineering projects for water drainage, waterproof protection, moisture isolation and pressure relief applications.
Introduction
Dimpled Drainage Board are one of the most practical waterproof and drainage geosynthetic materials used to eliminate accumulated water and reduce hydrostatic pressure in various construction projects. They provide outstanding compression resistance and long-term structural stability in humid, buried and harsh underground environments.
What is Dimpled Drainage Board / Dimple Membrane?
A

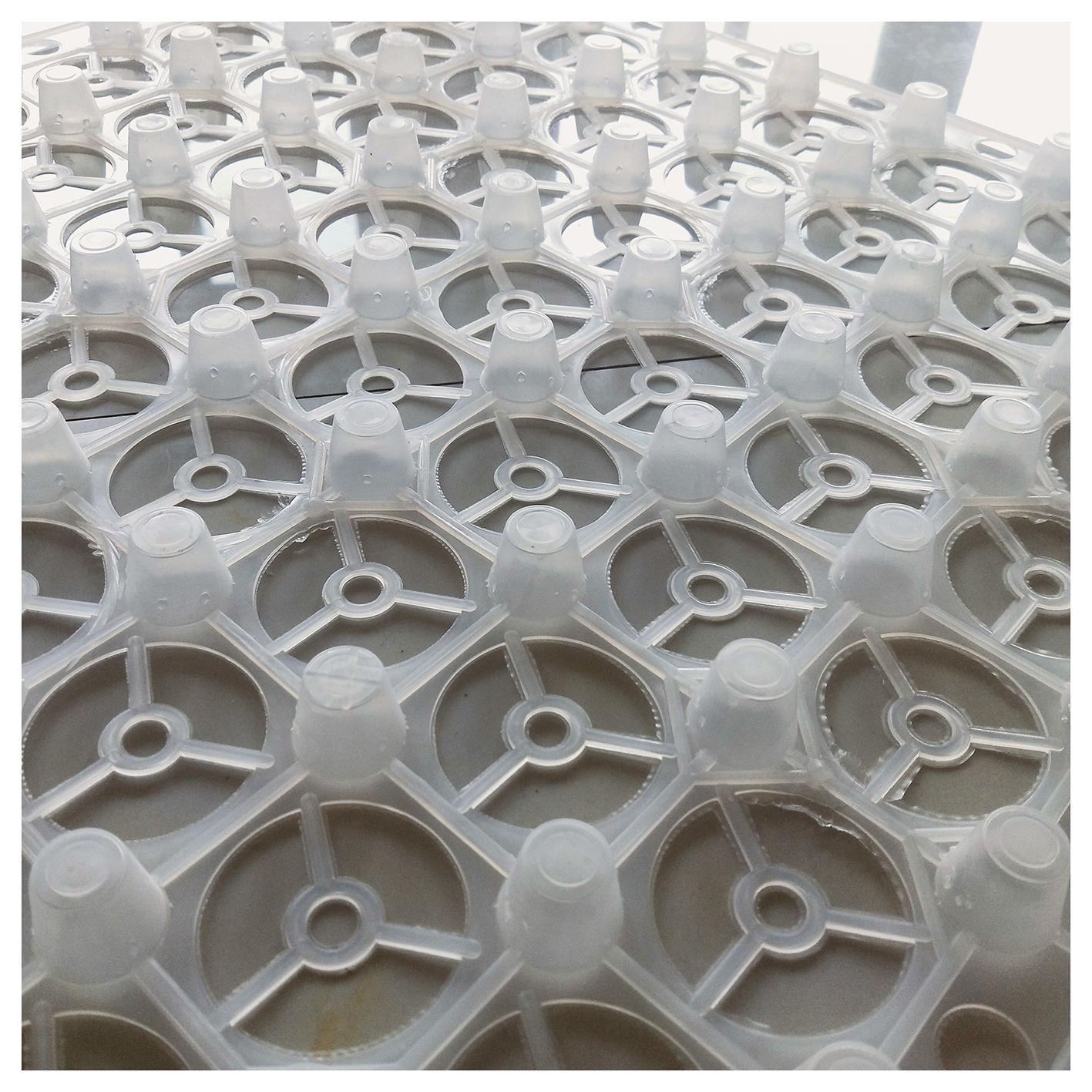

Dimpled Drainage Board is a rigid three-dimensional dimpled polymeric membrane designed to accelerate water flow and prevent structural water damage. It is commonly manufactured from high-density polyethylene (HDPE) and polypropylene (PP) raw resin.
These convex dimpled sheet structures are essential for basement waterproofing, underground isolation, roof drainage, wall protection, effectively reducing water pressure and improving the drainage efficiency of engineering layers.
Types of Dimpled Drainage Boards

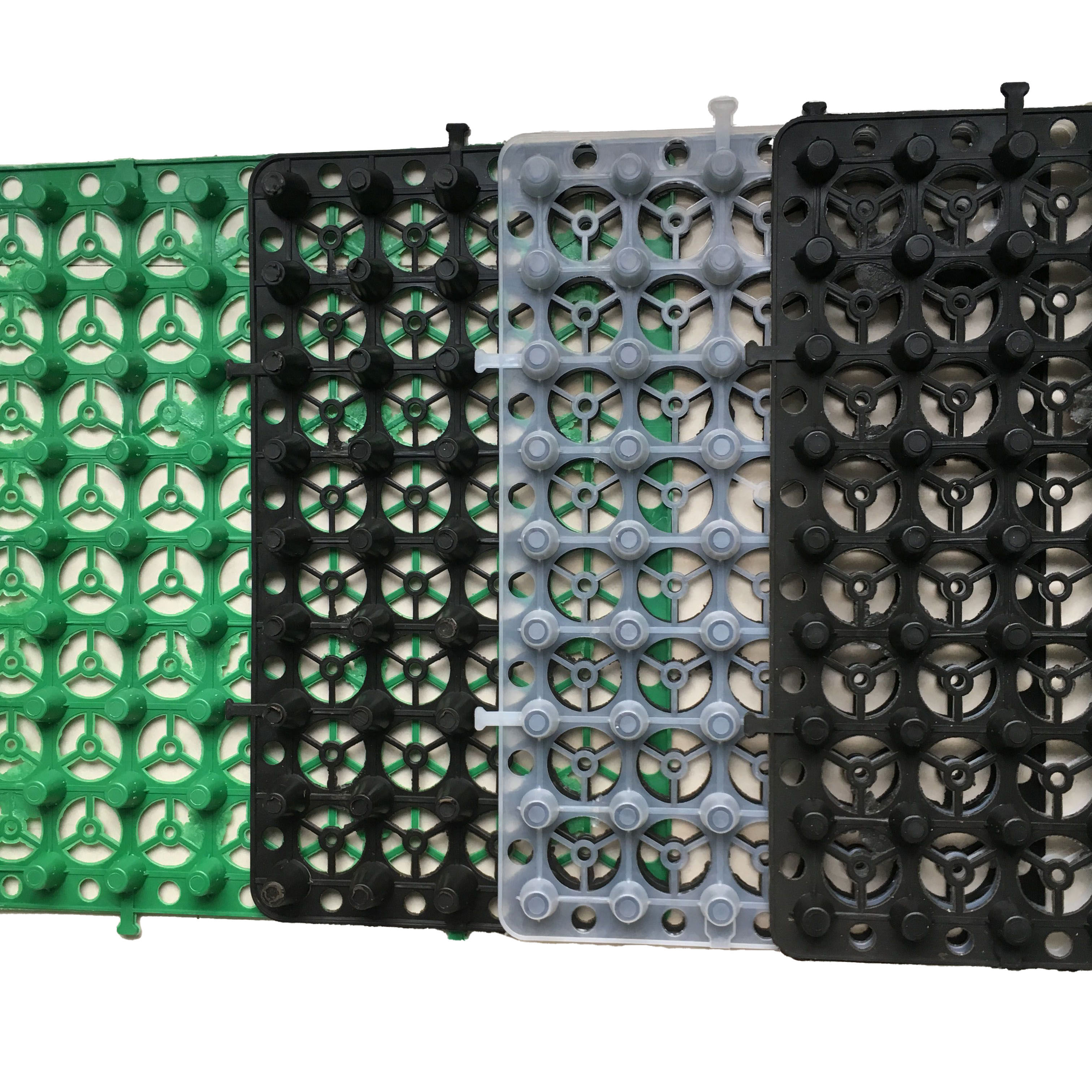

Single-Sided Dimple Membrane: Single convex structure, basic drainage for foundation and wall protection

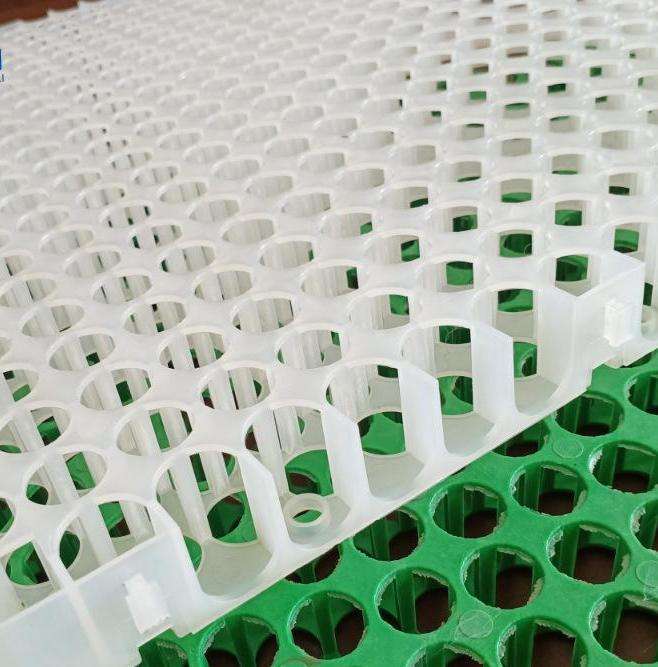

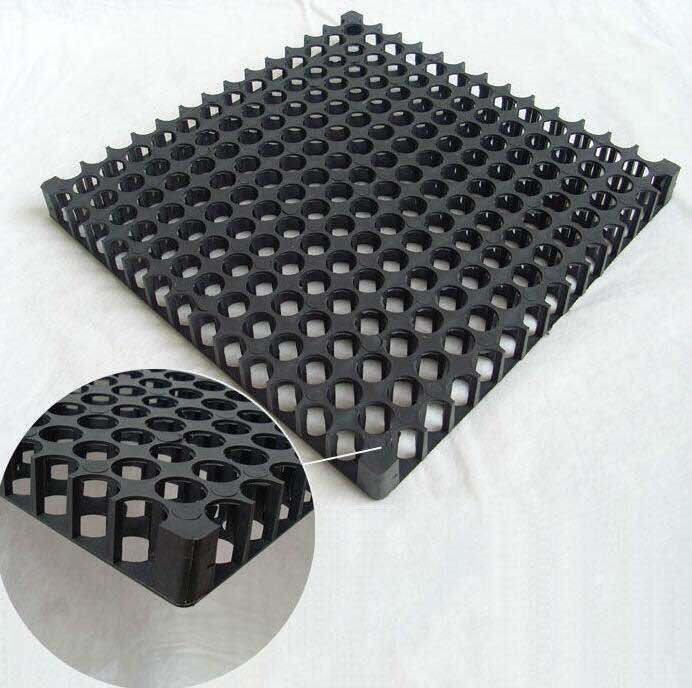

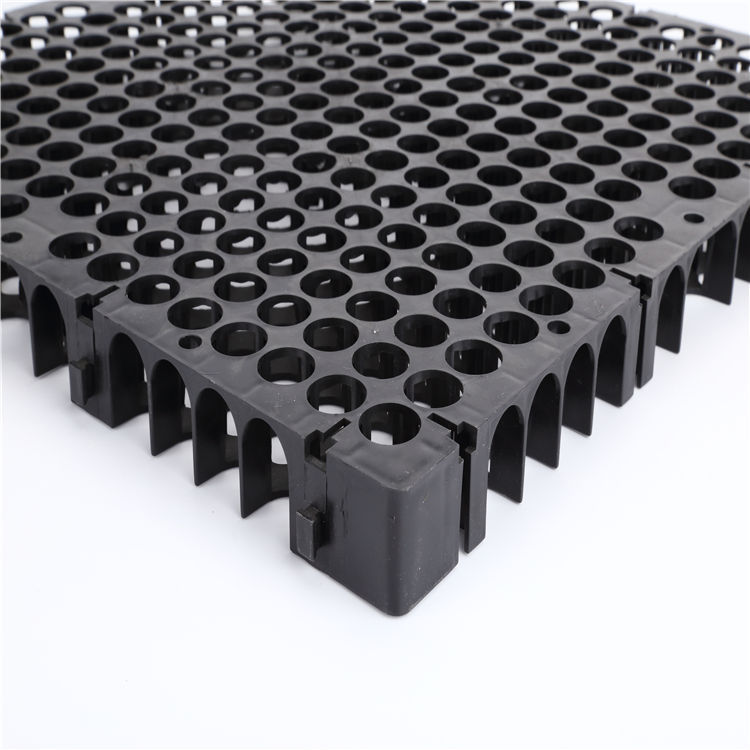

Double-Sided Dimpled Drainage Board: Bidirectional drainage channel for complex underground structures
Composite Dimpled Board: Combined with geotextile for filtration, anti-blocking and integrated drainage
High-Density Dimple Membrane: Thickened raw material for heavy-load and permanent engineering
Key Features of Dimpled Drainage Board
-
High compression strength and non-deformation under continuous heavy pressure
-
High resistance to acid, alkali, chemicals and UV exposure
-
Smooth three-dimensional channel for fast and unobstructed water flow
-
Anti-root penetration and anti-aging performance for long-term burial
-
Lightweight flexible sheet for easy cutting and construction adaptation
Technical Specifications
Dimple Height: 8mm – 40mm
Width: up to 3 meters
Material: HDPE / PP virgin resin
Structure: Single-sided / Double-sided convex dimple structure
Standards: ASTM, ISO
Applications of Dimpled Drainage Board
Dimpled Drainage Boards are widely used in various industries:
-
Building basement wall and floor waterproof drainage treatment
-
Underground garage, tunnel and subway moisture isolation projects
-
Green roof, landscape terrace and vertical greening drainage
-
Landfill anti-seepage, leachate collection and gas discharge systems
-
River slope, reservoir and retaining wall back drainage engineering
-
Industrial yard, underground passage and foundation protection systems
Advantages of Dimpled Drainage Board
Compared with traditional gravel drainage layers, dimpled drainage boards offer several advantages:
-
Stable hollow channel structure, effectively avoiding drainage blockage
-
Reduce hydrostatic pressure and greatly extend waterproof layer service life
-
Save construction space and lower overall earthwork cost
-
Lightweight roll membrane for convenient transportation and rapid laying
-
Long-term anti-aging and stable physical performance under buried conditions
Installation and Laying

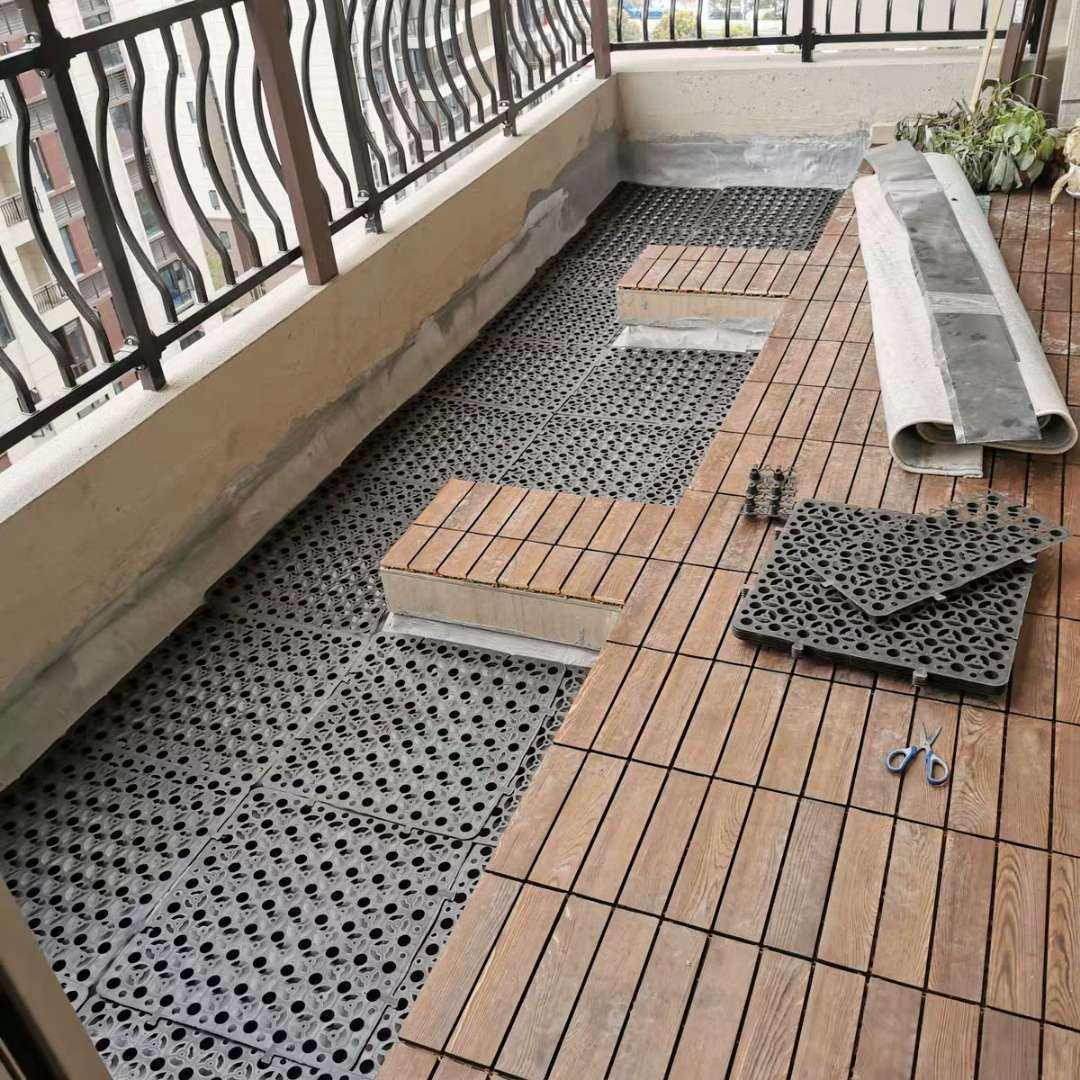

Dimpled drainage boards are laid on clean, flat and compacted base layers with reasonable overlapping joints. Keep the convex dimples facing the water accumulation side to ensure smooth water flow. Fix the membrane edges firmly to prevent sliding and dislocation. After laying, cover protective geotextile to avoid sharp object damage and maintain stable drainage channels.
How to Choose Dimpled Drainage Board?
When selecting dimpled drainage board, consider the following factors:
-
Project type: basement, tunnel, green roof or landfill engineering
-
Required dimple height and compression resistance grade
-
Environmental conditions (humid soil, corrosive chemicals or UV exposure)
-
Membrane type: single-sided or double-sided dimpled structure
-
Compliance with international engineering standards
FAQ
What is dimpled drainage board used for?
It is used for underground drainage, basement waterproofing, wall moisture isolation and roof water removal in civil and geotechnical engineering.
What is the difference between dimple membrane and geotextile?
Dimple membrane focuses on three-dimensional water conduction and pressure relief, while geotextile mainly provides filtration, isolation and soil protection functions.
How long does dimple membrane last?
HDPE dimpled membrane can last 50–70 years under buried conditions with stable drainage performance.
Can dimpled drainage board be customized?
Yes, dimple height, sheet thickness, width and color can be customized for specific construction requirements.
Conclusion
Dimpled Drainage Boards / Dimple Membranes are essential waterproof and drainage geosynthetic materials for modern construction projects requiring reliable water isolation and drainage solutions. Their rigid dimpled structure, excellent compression resistance and chemical durability make them a preferred choice across municipal, underground and landscape construction industries.
